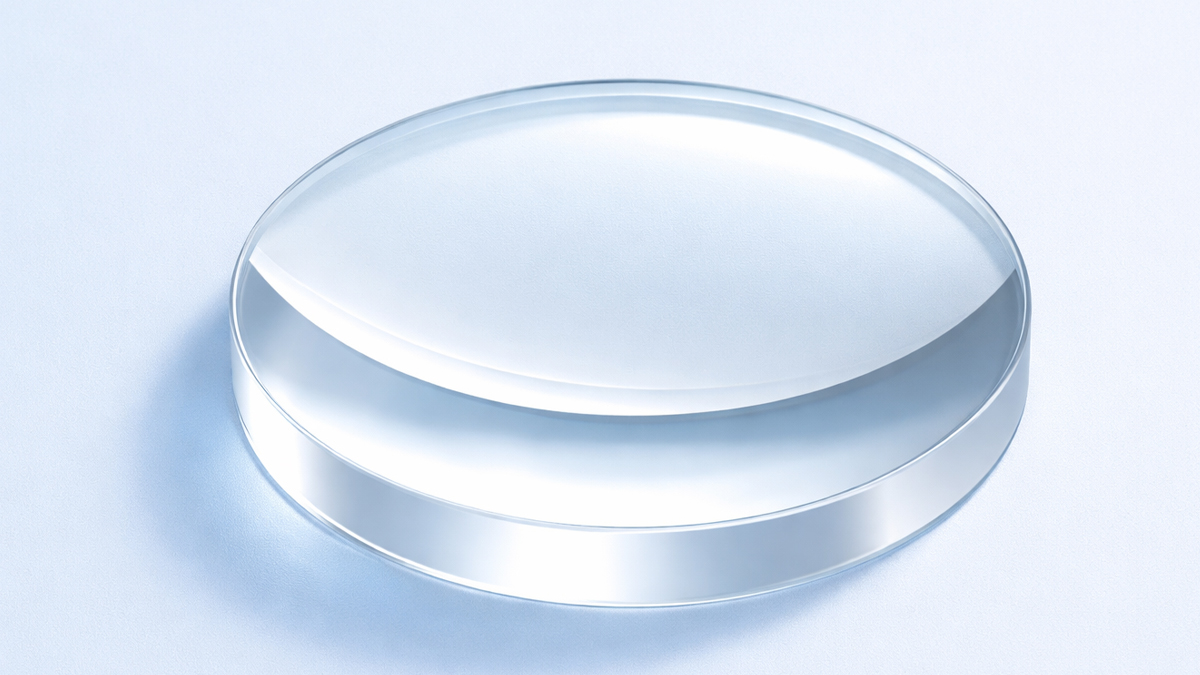

What is Plano Concave Lens?
Basic concept: A plano concave lens is an optical lens that has one flat surface and one inward curved surface. Because of this shape, it causes parallel light rays to spread outward after they pass through the lens. For this reason, it is known as a diverging lens. In optical engineering, this lens is used when designers need to control beam spread, reduce image size, shape light paths, or balance other lens elements in a larger optical assembly.
Structure and identity: The word plano refers to the flat side, while concave refers to the surface that curves inward. This combination gives the lens a negative focal length. That means incoming parallel rays do not meet at a real point after passing through it. Instead, they diverge as if they came from a virtual focal point located on the same side as the light source.
Importance in optics: Plano concave lenses are not usually chosen to create magnified images on their own. Their strength lies in correction, control, and beam handling. They are widely used in scientific instruments, projection systems, laser devices, viewfinders, imaging assemblies, and complex camera lenses. In cinema related technology, they support optical balance and help engineers manage light before it reaches the image sensor or film plane.
Practical view: In simple terms, a plano concave lens is a light spreading component. It is one of the fundamental optical components used wherever image quality, light direction, and optical precision matter. Although it may look simple, it plays an important role in many advanced visual systems.
How does Plano Concave Lens Work?
Light behavior: A plano concave lens works by refracting light at its two surfaces. When a beam of light enters the lens, the change in material from air to glass or another optical medium bends the rays. As the rays travel through the curved geometry and then exit back into air, they bend again. Because one surface is concave, the overall effect is divergence.
Negative focal length: The lens has a negative focal length, which means it spreads parallel incoming light rays apart. If those outgoing rays are traced backward, they appear to originate from a point called the virtual focus. This virtual focus is not a place where light physically gathers, but it is a useful reference in optical design.
Image formation: When an object is viewed through a plano concave lens by itself, the image appears upright, virtual, and smaller than the original object. This characteristic differs from converging lenses, which can form real images under certain conditions. The plano concave lens is therefore more suitable for reducing or expanding the field of light rather than projecting a focused real image on its own.
Refraction principle: The working principle depends on the refractive index of the lens material and the curvature of the concave surface. A stronger inward curvature or a higher refractive index generally increases the lens ability to diverge light. Designers carefully calculate these features to achieve the required optical effect.
Role in multi lens systems: In many professional devices, especially camera and cinema optics, a plano concave lens is rarely used in isolation. It is combined with convex and other specialized lenses to correct aberrations, extend focal design options, and improve light control. In such systems, its job is often subtle but very important.
Beam expansion use: In laser and illumination systems, a plano concave lens can be used to enlarge a beam or prepare light for further shaping. In cinema electronics, this type of control is important in projectors, precision sensors, optical monitoring equipment, and calibration tools.
What are the Components of Plano Concave Lens?
Flat surface: One side of the lens is plane or flat. This surface helps define the optical orientation of the lens and often simplifies mounting, alignment, or contact with other elements in a device. The flat side does not create the full optical effect by itself, but it contributes to the total refractive behavior of the lens.
Concave surface: The other side curves inward. This is the main surface responsible for the diverging action. Its radius of curvature strongly influences the focal length and optical power of the lens. A deeper curve generally creates stronger divergence.
Optical material: The lens body is made from carefully selected transparent material. Common materials include optical glass, fused silica, acrylic, polycarbonate, and other engineered substrates. The choice depends on cost, weight, durability, temperature stability, wavelength requirements, and image quality expectations.
Lens coating: Many plano concave lenses include anti reflective coatings. These coatings reduce light loss from surface reflections and improve transmission. In professional cinema related systems, coatings are valuable because they help maintain contrast, reduce flare, and improve optical efficiency under demanding lighting conditions.
Edge and center thickness: Because the lens is thinner at the center and thicker at the edges, its physical dimensions matter. Engineers specify center thickness, edge thickness, and overall diameter to ensure correct performance and safe mounting. Mechanical balance is important in high precision instruments.
Aperture area: The usable clear aperture is the portion of the lens through which light can pass effectively. This area must be free from scratches, bubbles, or surface defects. A high quality clear aperture helps preserve image quality and beam consistency.
Mounting interface: In practical systems, the lens is often placed in a holder, barrel, or frame. Although the mount is not part of the optical material itself, it is part of the working assembly. Proper mounting ensures alignment, reduces vibration, and protects the lens from stress.
Surface finish: The quality of polishing on both surfaces affects how well the lens performs. A smooth optical finish reduces scattering and keeps the transmitted light clean. In cinema and imaging applications, fine surface quality supports sharp results and dependable optical behavior.
What are the Types of Plano Concave Lens?
By material: Plano concave lenses are available in glass, plastic, quartz, fused silica, and infrared transmitting materials. Glass versions are often preferred for high optical quality and durability. Plastic versions are lighter and may be chosen for cost sensitive or portable devices.
By coating style: Some lenses are uncoated, while others are coated for visible light, infrared wavelengths, ultraviolet applications, or broad spectrum transmission. Coated lenses are common in professional optical systems because they reduce reflection and increase efficiency.
By precision grade: Commercial grade lenses are suitable for general use, while precision grade lenses are manufactured with tighter tolerances. Precision versions are important in cinema electronics, laboratory equipment, sensor assemblies, and projection systems where even small optical errors can affect performance.
By wavelength use: Certain plano concave lenses are designed specifically for visible light systems, while others are optimized for ultraviolet, infrared, or laser wavelengths. This matters because lens materials and coatings behave differently across the electromagnetic spectrum.
By focal length: These lenses come in a wide range of negative focal lengths. A shorter negative focal length produces stronger divergence, while a longer negative focal length produces gentler spreading. Designers choose the value based on the optical task.
By diameter and form factor: Some are miniature for compact instruments, while others are larger for projectors, beam expanders, and specialized visual equipment. Size influences how much light the lens can handle and how it fits into the overall assembly.
By use in assemblies: Some plano concave lenses are sold as standalone elements, while others are built into compound lens groups, optical modules, or projector systems. In cinema technology, embedded use is especially common because modern equipment depends on multi element design.
What are the Applications of Plano Concave Lens?
Beam expansion: One important application is expanding light beams. In laser systems and illumination devices, the lens helps spread the beam so that it can cover a wider area or enter another optical stage correctly.
Optical correction: Plano concave lenses are frequently used with convex lenses to correct aberrations and adjust focal properties. This is useful in camera lenses, projection systems, microscopes, and other instruments that demand balanced optical performance.
Viewers and instruments: They are found in telescopes, optical comparators, scanning systems, and measuring tools. In these devices, the lens helps shape light paths and support clear viewing or accurate measurement.
Projectors: In projection technology, plano concave lenses can participate in the management of beam geometry and focus relationships. Their ability to spread light makes them useful in optical groups where beam distribution must be controlled carefully.
Medical and scientific equipment: Many diagnostic and laboratory instruments use this lens type for beam shaping, image path control, or sensor optimization. Precision optics are essential in these fields, and plano concave lenses contribute to stable optical performance.
Cameras and imaging systems: In photography and cinema related optics, plano concave elements are often placed inside compound lenses. They help reduce distortion, manage focal behavior, and improve image consistency across the frame.
Virtual image systems: Since the lens produces upright virtual reduced images when used alone, it can be useful in educational demonstrations and simplified optical setups that illustrate image formation principles.
Sensor alignment tools: In modern electronics and optical calibration setups, a plano concave lens may be used to control incoming light before it reaches a detector. This can help improve signal interpretation and testing accuracy.
What is the Role of Plano Concave Lens in Cinema Industry?
Optical control in cinema equipment: The cinema industry depends on precise control of light. Cameras, projectors, monitoring systems, and sensor based tools all rely on carefully engineered optics. A plano concave lens supports this ecosystem by helping designers spread, redirect, and balance light in ways that improve system performance.
Support in cinema camera lenses: Professional cinema lenses contain multiple optical elements, each with a specific role. A plano concave lens may be included to manage divergence, correct optical errors introduced by other elements, or help shape the image path for better sharpness and consistency. This is especially important in high resolution digital cinema where every detail matters.
Contribution to projection systems: Cinema projectors require strong optical efficiency and controlled beam behavior. Plano concave lenses can assist in preparing and distributing light within the projector optical chain. This helps support even illumination, better projection geometry, and improved viewing quality on large screens.
Use in electronic optical modules: Cinematic electronics includes advanced focus assist tools, digital viewfinders, optical sensors, calibration units, and alignment devices. In these systems, plano concave lenses help adjust light spread and improve how light interacts with electronic components. Their role may be hidden from the audience, but it is important in the engineering stage.
Reduction of optical defects: High quality cinema images require control over distortion, flare, focus transitions, and edge behavior. Plano concave elements can contribute to correcting or compensating for these issues when used in carefully designed lens groups.
Support for modern formats: As cinema technology moves toward larger sensors, higher dynamic range, and more demanding projection standards, optical assemblies must become more refined. Plano concave lenses remain relevant because they provide designers with another precise tool for managing light behavior inside complex systems.
What are the Objectives of Plano Concave Lens?
Light divergence: The first objective of a plano concave lens is to diverge incoming parallel light rays. This is its primary optical purpose and the defining feature that separates it from converging lenses.
Beam shaping: Another objective is to control beam size and direction. In many systems, it is necessary to spread light before focusing it again or before sending it into another optical element.
Image control: The lens can reduce apparent image size and create virtual upright images. This objective is useful in certain viewing and optical demonstration contexts.
Optical balancing: In compound systems, one objective is to counter or balance the effect of positive lenses. This helps designers achieve specific focal results and better aberration management.
System refinement: A plano concave lens supports the broader objective of improving the overall optical path. It can help maintain image clarity, distribute light more effectively, and make complex systems more efficient.
Mechanical compatibility: Because it can be manufactured in many sizes and materials, it also serves the objective of fitting into compact or specialized devices without sacrificing optical function.
Cinema specific objective: In cinema electronics, the objective is often not to act alone but to enhance the total optical design. It helps engineers deliver cleaner, more controlled, and more consistent visual performance in professional equipment.
What are the Benefits of Plano Concave Lens?
Simple but effective design: A major benefit is that the lens offers strong optical utility with a relatively simple shape. This makes it easier to integrate into both basic and advanced systems.
Useful for divergence: It is highly effective when a design requires light spreading. This makes it valuable in beam expanders, optical correction assemblies, and light management modules.
Compact integration: Plano concave lenses can be built into compact devices, which is important in modern electronic and cinematic equipment where space efficiency matters.
Aberration management support: When paired with other lenses, it can help reduce specific optical imperfections. This improves the final image or beam quality.
Versatility: It can be used in scientific tools, cameras, projectors, sensors, laboratory devices, and educational models. This broad usefulness is one reason it remains important in optics.
Material flexibility: The lens can be produced in different optical materials to match visible, ultraviolet, infrared, or laser applications. This allows the same optical principle to serve many industries.
Improved system control: By giving designers precise influence over ray paths, the lens helps create more stable and predictable optical assemblies. This is particularly beneficial in cinema, where light control strongly affects visual storytelling quality.
What are the Features of Plano Concave Lens?
One flat side and one inward curve: This is the most visible feature and the basis of its name. The geometry determines the diverging nature of the lens.
Negative focal length: A plano concave lens has negative optical power. This is a defining technical feature used in calculations and design selection.
Thin center and thicker edges: Its thickness profile differs from that of a plano convex lens. This physical form is directly tied to how it refracts light.
Virtual upright image formation: When used alone for observation, it forms a smaller upright virtual image. This is a classic feature studied in basic optics.
Availability in many materials: It is manufactured in glass, polymers, silica, and specialty materials. This feature broadens its practical use.
Optional coatings: Anti reflective and wavelength specific coatings are available to improve transmission and reduce glare or reflection losses.
Precision manufacturability: It can be made to different levels of polish, curvature accuracy, and dimensional tolerance. This makes it suitable for both general products and high end cinema related equipment.
Compatibility with compound optics: One of its strongest features is that it works very well as part of a multi lens system. This makes it especially relevant in professional optical engineering.
What are the Examples of Plano Concave Lens?
Camera lens groups: Inside some complex camera lens designs, plano concave elements may be used to support correction and focal balancing. They are usually not visible to the user, but they are important to the internal optical formula.
Laser beam expanders: A common example is a beam expansion setup where a plano concave lens helps spread the laser beam before another lens refines it further.
Cinema projector optics: In certain projector assemblies, plano concave lenses can help manage light distribution and beam geometry as part of the internal optical path.
Optical lab equipment: Educational benches and laboratory instruments often use plano concave lenses to demonstrate light divergence and virtual image formation.
Scanning devices: Some optical scanners and sensor systems use this lens type to adjust how light enters the reading mechanism.
Viewfinder and measuring instruments: Specialized optical tools may include plano concave lenses to control apparent image scale or manage light direction.
Scientific imaging modules: Research instruments that require careful beam control may use a plano concave element in combination with other lenses and mirrors.
What is the Definition of Plano Concave Lens?
Technical definition: A plano concave lens is a negative spherical lens having one plane surface and one concave spherical surface, designed to diverge incident parallel light rays.
Functional definition: It is an optical component that spreads light outward after transmission and forms a virtual, upright, reduced image when used alone with a viewed object.
Applied definition: In practical engineering, a plano concave lens is a beam shaping and correction element used in optical systems that require controlled divergence, focal adjustment, or compensation for other lens elements.
Educational definition: It is one of the fundamental lens forms taught in optics because it clearly demonstrates divergence, virtual focus, and image size reduction.
What is the Meaning of Plano Concave Lens?
Word meaning: The term combines two descriptive words from optical geometry. Plano means flat, and concave means curved inward. Together, they describe a lens with one flat face and one inward curved face.
Scientific meaning: In optics, the meaning of plano concave lens goes beyond shape. It represents a specific optical function, which is the divergence of light.
Design meaning: To an optical engineer, this lens means control. It is a tool used to fine tune beam spread, focal behavior, and system correction.
Cinema meaning: In the cinema industry, the meaning of a plano concave lens lies in its contribution to precision imaging and light management. It may not be the most visible component, but it supports the visual quality expected from professional cinematic systems.
What is the Future of Plano Concave Lens?
Advanced materials: The future of plano concave lenses will likely involve improved optical materials with better transmission, lighter weight, stronger thermal stability, and greater resistance to environmental stress. These developments can help cinema equipment become more durable and efficient.
Better coatings: Coating technology continues to advance. Future plano concave lenses may achieve lower reflection, higher contrast support, and more specialized wavelength control. This is especially useful in digital cinema, laser projection, and sensor based imaging systems.
Miniaturized optical systems: As cinematic electronics become more compact and more powerful, smaller precision lenses will become increasingly important. Plano concave lenses can remain relevant because they are easy to adapt to tight optical assemblies.
High resolution cinema demands: Future cinema cameras and projectors will continue pushing for higher clarity, better edge performance, and improved color consistency. Compound lens systems will require carefully optimized negative elements, and plano concave lenses can continue serving that purpose.
Integration with smart optical modules: Emerging systems may combine optics with software driven focus, alignment, and calibration tools. In such environments, plano concave lenses will still be important physical elements inside highly intelligent optical hardware.
Custom manufacturing: Modern production methods make it easier to create lenses with exact tolerances for niche applications. This means future plano concave lenses may be more application specific, especially for premium cinema tools and specialized visual devices.
Long term relevance: Even as optical technology becomes more advanced, fundamental lens shapes do not disappear. They remain part of the design language of optics. The plano concave lens is likely to continue as a core component in education, industry, science, and cinema.
Summary
- A plano concave lens is a diverging lens with one flat surface and one inward curved surface.
- It has a negative focal length and causes parallel light rays to spread outward.
- When used alone, it forms a virtual, upright, and smaller image.
- Its main components include the flat side, concave side, optical material, coatings, thickness profile, and clear aperture.
- It is available in different materials, coatings, focal lengths, sizes, and precision grades.
- Common applications include beam expansion, optical correction, imaging systems, projectors, sensors, and laboratory instruments.
- In the cinema industry, it supports camera optics, projector assemblies, electronic optical modules, and image quality refinement.
- Its objectives include light divergence, beam shaping, focal balancing, and optical system improvement.
- Its benefits include versatility, compact integration, material flexibility, and improved control in complex optical assemblies.
- Its features include negative optical power, thin center, thicker edges, and compatibility with multi lens systems.
- Examples can be found in laser beam expanders, cinema projectors, camera lens groups, scanners, and optical teaching setups.
- Its definition is rooted in both shape and function, while its meaning extends to practical optical control.
- The future of plano concave lenses remains strong due to better materials, better coatings, miniaturization, and growing demand for precision cinema optics.
